AiM Solo 2 DL - GPS Lap Timer/Data Logger

Smarter, smaller and more powerful than ever: the brand new Solo 2 DL with ECU connection via RS232/CAN unterminated cable.

Click here for Stock ECU List | Click here for Racing ECU List

Not just a lap-timer, the AiM Solo 2 DL is the most precise tracker on the market: receiving data from GPS and Glonass, two satellites constellation, our device provides lap-times with just a max 2/100 of tolerance.
The Solo 2 has 100 configurable RGB LEDs ready to inform you, sector to sector, if you are improving or not in live time.

Is that enough? Of course not. You should know that the AiM Solo 2 DL has also a huge internal track database with over 3000 circuits: at the power ON, it automatically select the right one, without any need of your setting. But even if the track you want to get in is not into the database yet, Solo 2 DL will switch to auto-learning mode, understanding the characteristics of the track and giving the lap times anyway.

Solo2 DL-V2 is available with the following cable options:

• OBD2 Cable

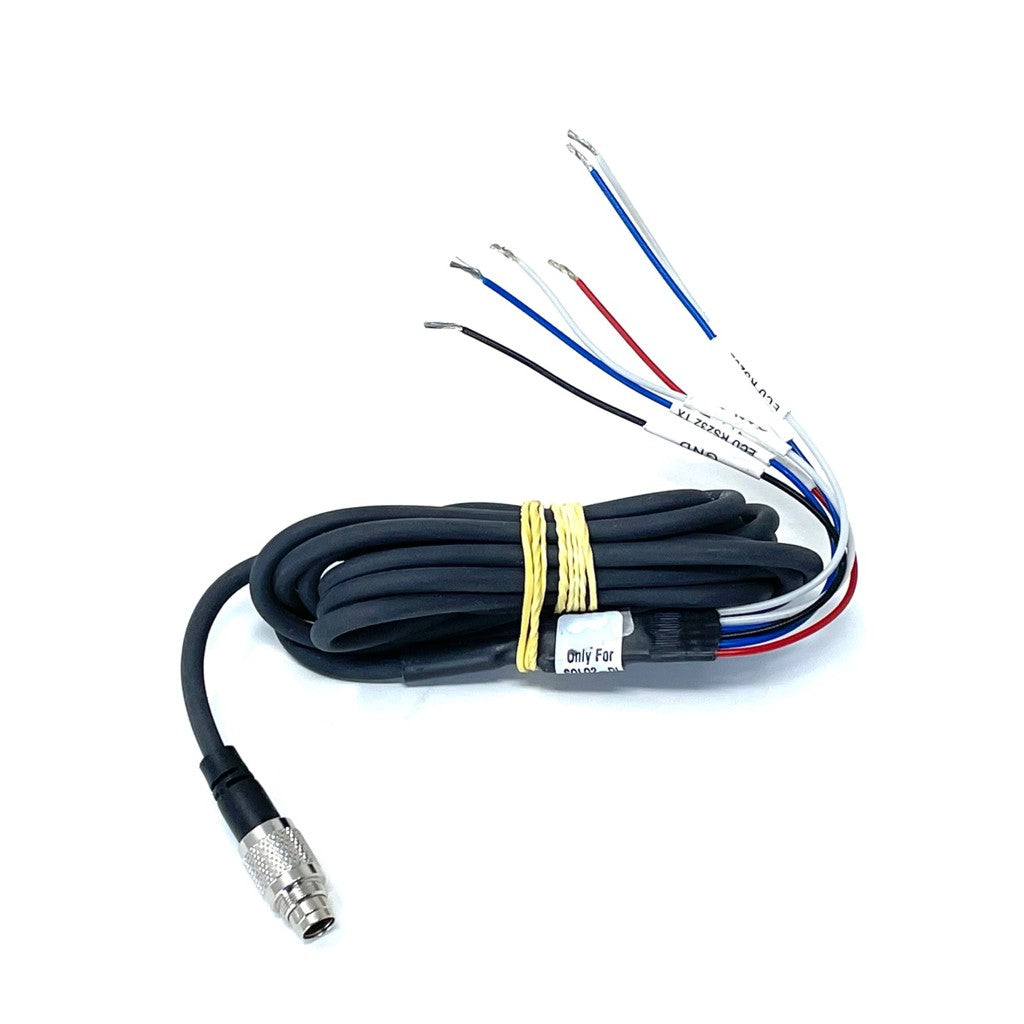

• RS232/CAN Cable
• RPM Cable (will pick up either square wave signal (8-50V each signal) or pulse signals) Perfect for logging RPM on older vehicles.

  New Firmware - Now the Solo 2 DL can do the following: (new units and current units can be upgraded with the latest firmware update to be compatible)
• Channel Expansion
  Channel Expansion for getting four analog channels, such as potentiometers, pressure sensors or thermoresistences.
• AiM ACC2 Analog CAN Converter
  Add up to 4 analog sensors including temp, pressure or potentiometers

Solo2 DL V-2 is compatible with the following:

• Lambda Controller
  Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

• SmartyCam3 Connections
  Get all the data from the ECU, merge them with the GPS information, with the internal inertial platform, from the analog inputs and transmit all the data to the SmartyCam3 cameras, that will show them in overlay in a 60-fps video.

Tracks, fields, hill-climbs… Wherever you are, whatever you are driving or riding, Solo 2 DL is exactly what you need and what you always needed.

• WiFi download - yes!
• Internal 3 Axis Accelerometer - +/-5g
• 7 Configurable Backlight RGB Colors
• Rechargeable Lithium Battery
• 1 Socket Connector (binder) 712 5 pin
• 1 Socket Connector (binder) 712 8 pin
• Graphical 128x64 pixel display
• CAN/RS232 or K-Line ECU Connection to 1000+ industry leading ECU's
• 12v external power
• 10hz GPS
• Internal 3 axis accelerometer / 3 Axis Gyro - 3 Axis Magnetometer
• Integrated tracks
• 4GB internal memory
• 10 Configurable Shift lights using RBG LED's
• 98mmx73.7mmx30.2mm size, 240g weight with battery

Here is a very small list of stock ECU connections available via ODBII: Thousands of stock and aftermarket ECU connections available. Links below for full list.

• Audi ECU connection - A3, A4, A5, A6, A8, TT and others
• BMW ECU connection - 1 Series, 3 Series, M3, M5, M6
• Chevrolet ECU connection
• Ferrari ECU connection - F430, 458 Challenge, GT2, GT3
• Ford ECU connection - Fiesta, Focus, Mustang, Shelby GT350, Shelby GT500
• GM Corvette ECU connection - C6 (LS2, LS3, LS7), C7
• Honda ECU connection - Civic, Type R
• Lamborghini ECU connection - Gallardo
• Lotus ECU connection - Elise S2, S3, Europa, Evora, Exige
• Mazda ECU connection - MX5, RX8, Mazda 2, Mazda 3
• McLaren ECU connection - 650S
• Mercedes ECU connection - AMG GT GT3, C63, E Class, SLK
• Mini ECU connection
• Porsche ECU connection - 991, 996, 997, Boxter, Cayman, Cayman S, Cayman R
• Subaru ECU connection - BRZ, Impreza, Legacy
• Toyota ECU connection - Auris, GT86, Scion FRS, Lexus, Yaris
• Volkswagen ECU connection - Golf 5, Golf 6, Jetta 5

Click here for Stock ECU List | Click here for Racing ECU List
