Chillout Systems - Version 3 Cooling System

The Quantum Cooler V3 offers three new advancements vs the V2 model.

• Internal 360 cfm brushless fans. When paired with 4 inch ducting, no inline blower is necessary decreasing amp draw while simplifying installation.
• Proprietary internal valve system that allows the cooler to continue to cool and circulate even when a shirt is not connected. No more cooling loops needed to pre-cool! System stays running and cooling during driver changes.
• Quick release plenum holder. Easily attach or detach plenum in less than 2 seconds with the pull of two pull pins located on the mounting plate. No more adhesive or screws necessary.


  Our line Quantum Coolers are the most powerful, portable, iceless cooling systems ever designed for auto-racing. Requiring no ice, this driver cooling system is completely maintenance free, running solely off the strength of a rotary micro-compressor that is as powerful as other compressors 5x its size.

  Rated at 20 liters per minute/16 psi, this system is capable of chilling to lower than but electronically limited to 35º F. Less than 1.75 oz. of freon is sealed within the rotary micro-compressor system. Max amp draw is rated at 18-22 amps, depending on installation and environmental conditions, even rain! IP65 rated. On a 100 degree day the V3 will bring coolant tempreture down to 58 degrees.

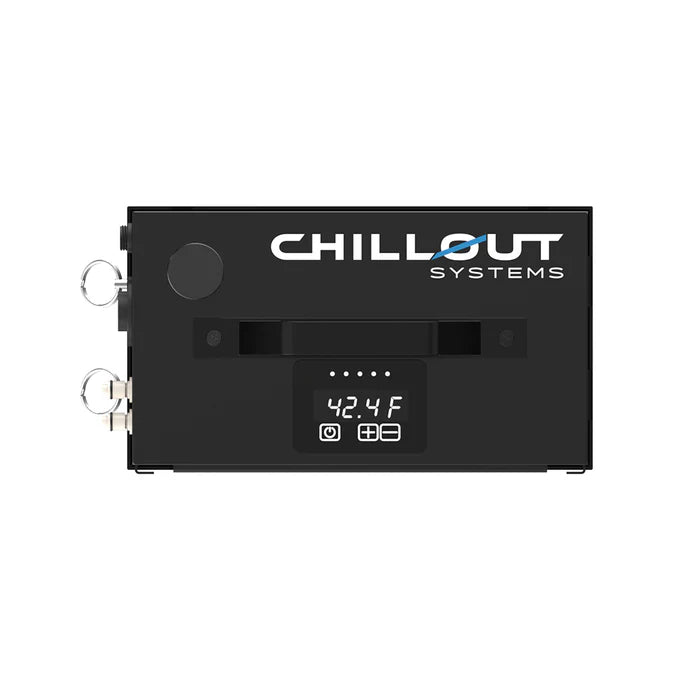

  The Quantum Cooler is simple to use and offers 5 temperature settings that support varying performance conditions, dual 175 cfm fans that help decrease amp draw, and a bright easy-to-read digital display.

  Weighing less than 11 pounds, the Quantum Cooler is portable and hot-swappable so you can quickly move it from mounting location to mounting location within seconds. Dash mountable digital control display available for installations out of reach from the driver. (total installed weight ready to use is 19 pounds)

Please consider the interior temperature of your vehicle and keep in mind that ducting with a blower may be necessary for some installations for best results.

In the box:

- Quantum Cooler V3
- Mounting Plate
- Wiring Harness
- Locking Ball Pins
- Priming Tube
