SmartyCam3 GP - 67 FOV

SmartyCam3 GP is for who needs external video and has very little space for installation. The brand new AiM Bullet-Cam features an internal battery of 1,250 mAh, 3 axis ± 16 G accelerometer.
SmartyCam3 GP is designed to be installed out from the vehicle, it is perfectly comfortable from – 10° to + 50° Celsius and the bullet is rated IP67 waterproof, to face the most extreme condition of racing.

Featuring 2 Binder 712 female connectors plus 2 SMA female connectors, the new SmartyCam3 GP has now a Display Port Output. Transmit data with Display Port cables can achieve a higher bandwidth than other cables. With a higher bandwidth the cable transmits more signals at the same time. Just like its precursor, the new SmartyCam3 doesn’t need an ECU Bridge to acquire data from your vehicle because it can be directly connected to your vehicle’s ECU plug-in-play and be ready to record your on-board videos and to improve your performance by analyzing the data overlay!

Kit comes with:

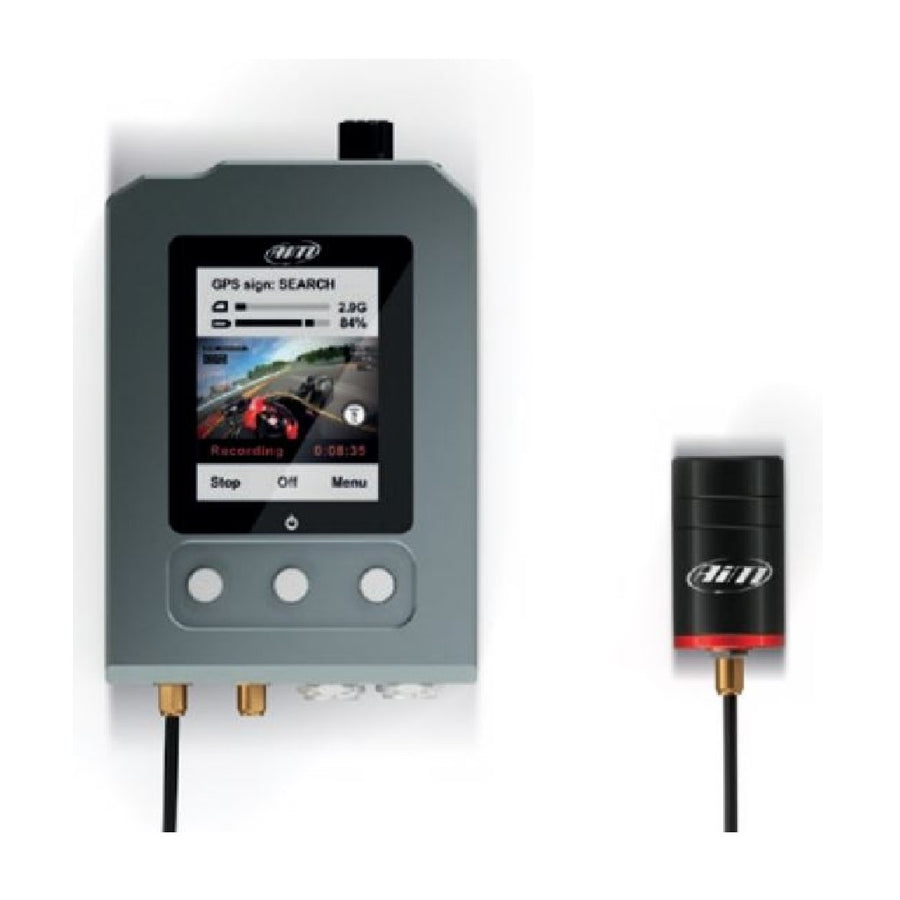

• SmartyCam3 GP - recording module
• SmartyCam3 GP - bullet camera
• USB download cable
• SD card
• 2m coax cable (recording module to bullet camera)
• 5pin-5pin CAN patch cable (select length above)

Configurable overlays

The new SmartyCam3 GP camera has been designed for motorsport with a single purpose: PROVIDING GREAT VIDEOS INCLUDING ALL INFORMATION YOU NEED. SmartyCam3 GP camera overlays all the data from both GPS and AiM loggers connected to your ECU.

Specifications:

• Global shutter CMOS sensor
• 1920x1080 FHD 60 fps H.264
• Display resolution 240x320 pixel
• Lens angle: 67 degree
• Internal, rechargeable lithium battery - 1250 mAh
• Internal 64GB SSD
• 9-15 volt external power
• Support for up to 2TB SD card
• Three-axial +/- 16G accelerometer
• -10C degree / +60C working temperature range
• Auto power ON/OFF
• Auto Start/Stop recording

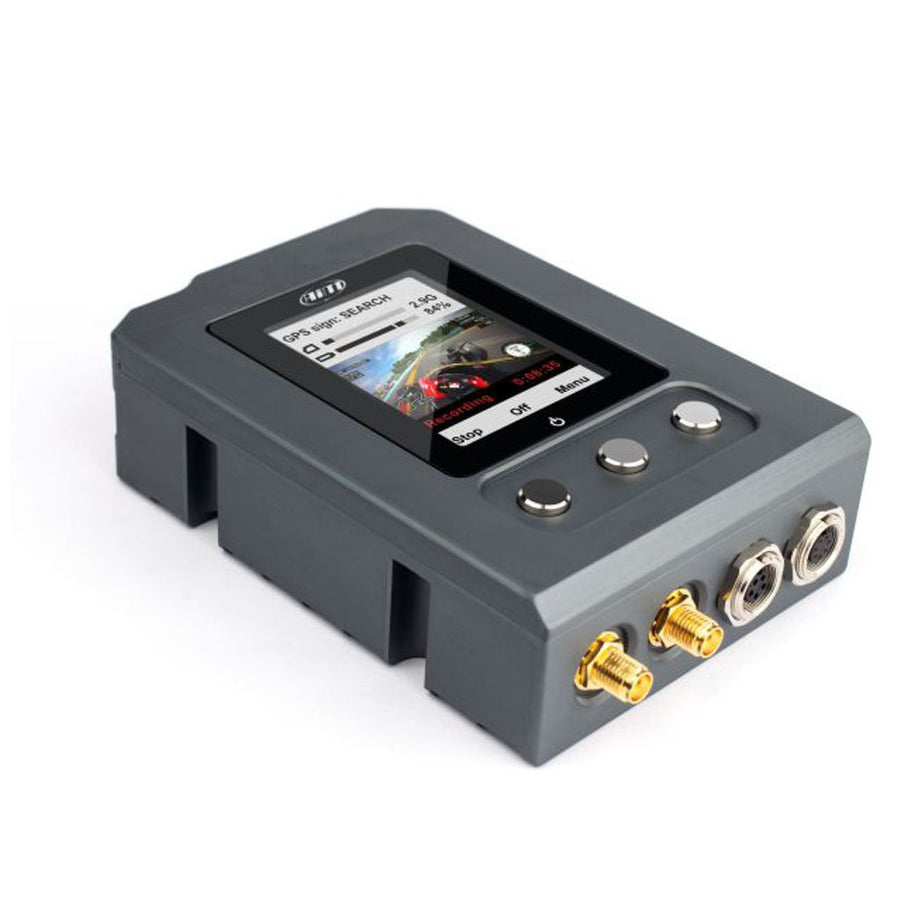

• 2 712 binder female
• 2 SMA female connectors
• Video out
• Bullet camera cable length - 2m
• Display port output
• Ethernet 1 Gigabit
• CAN / RS232 ECU connection
• Waterproof IP65 (camera IP67)

High quality with small size video files
High quality with small size video files Generic HD cameras are focused on the highest pixel number. The result is that their video files are far too large, taking too much memory. SmartyCam3 videos have the same quality as other FHD cameras but their files are smaller because the H.264 compression system parameters have been optimized to a perfect balance between video quality and file size. You can choose among three video file quality levels: one-hour recording takes 4 GB (high quality), 2 GB (normal) or 1,5 GB (low).

No “Wave Effect“ with Global Shutter CMOS
Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM. SmartyCam3 cameras have been designed for that environment and for those vibrations. “Wave effect” is just a distant memory

Designed for the extreme
An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather, such as: strong and prolonged vibrations, continuous rain and extremely high and low temperatures. That is why SmartyCam3 are IP65 waterproof and made in machinery molded aluminum, just like many competition car parts.

Automatic Start & Stop
You are on the starting grid, ready to sprint, your adrenaline reaching the climax: the last thing you can worry about is... switching on the camera. You have other things to worry about. SmartyCam3 is aware of that. That is why it switches on/off automatically and starts/stops recording the same way.

Full internal datalogger

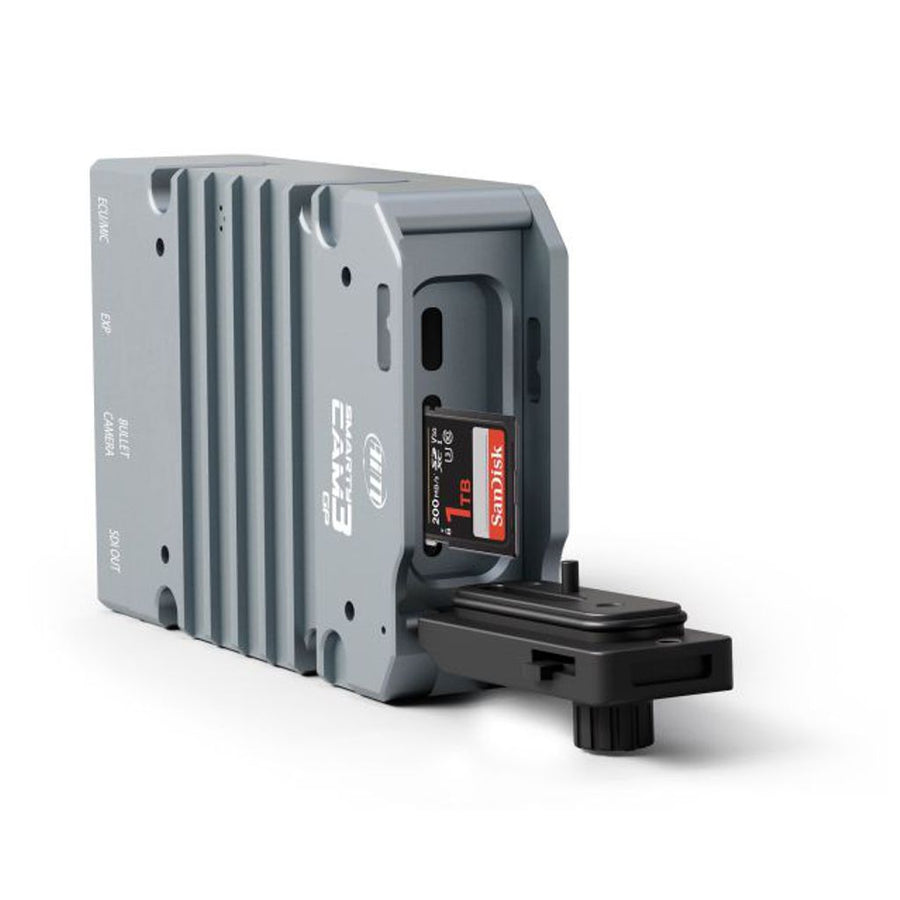

All the data received from CAN and internal sensors are recorded in .mov files produced at the end of your test, your SD (or MSD) Card contains all the information you need for a deep data analysis. SD card sold separately.

Video Output
If you need to stream your video in real time an SDI output is available on SmartyCam3 GP and SmartyCam3 DUAL.
