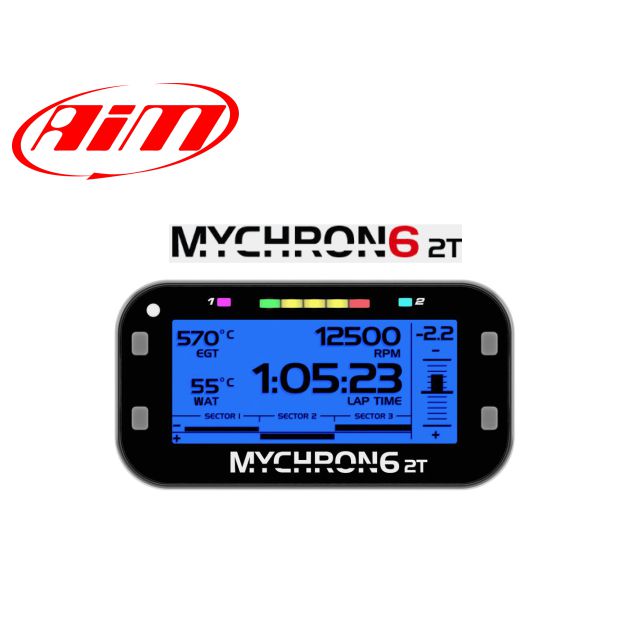

AiM MyChron 6-2T Kart Dash / Data Logger

With wider display, second AUX CAN connection, 6 Axis IMU for steering wheel angle and Wi-Fi or USB connection to the PC. Upgraded screen with multiple background color options, Bluetooth connectivity and 20 hours of non-stop working internal rechargeable Lithium battery. The sixth generation MyChron had the integration of increasingly advanced technologies, such as high-precision GPS. The MyChon6 also uses the USB-C charging port for running an external 16GB mass storage memory module for easy quick removal.

• Wider Display
• 6 Axis IMU (inertial measurement unit) for measuring steering wheel angle / input
• 2 Temperatures (EGT, CHT, H2o) any combination of 2 of the 3 listed
• Second CAN, user configurable
• USB-C connector for mass storage, battery charger and PC communication
• Wi-Fi or USB connection to the PC
• 6 axis IMU also for measuring steering wheel position
• 20 hours of non-stop working (internal rechargeable Lithium)
• Compatible with heart rate monitors via Bluetooth
• 25 Hz GPS
• 1 Digital output, programmable high/low activation
• Compatible with IR eye when using trackside beacon (8pin to 4pin patch cable will be required)

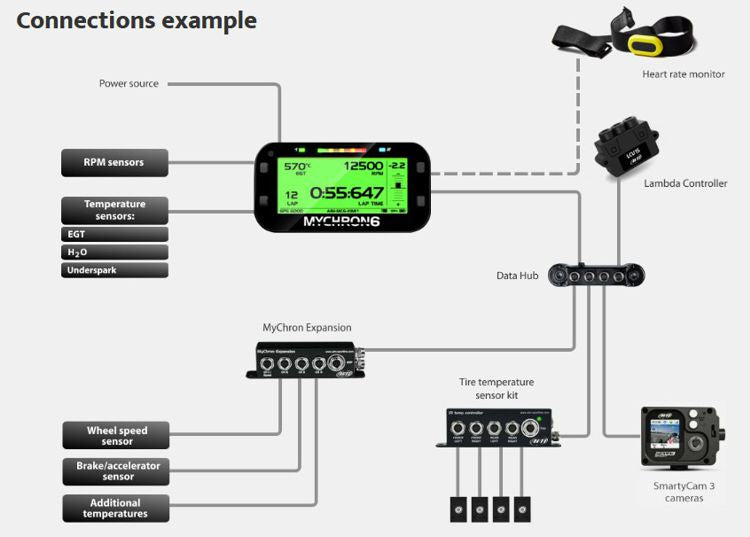

Compatible with:

• MyChron Expansion
• IR Temperature Controller
• SmartyCam3 Series of Camera's
• Lambda LCU-One and LCU1S)

Bluetooth connectivity
Seamless connectivity with the advanced Bluetooth module in the MyChron6. If you want to measure your heart rate while racing, it can now be done. Simply connect your MyChron6 via Bluetooth to the heart rate monitor and look the data on-screen or download them after the race. Compatible with the most common heart rate monitor on the market.

3D accelerations and gyro
The 6-axis 50 Hz Inertial Measurement Unit (IMU) measures acceleration in the forward-backward, up-down and right-left directions and the angular velocity in the
kart's pitch, roll and yaw directions, then calculates and relays that information in real-time to MyChron6.

MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.
