AiM MXG 1.3 Dash Logger - 7"

$3,249.00

AiM MXG 1.3 Dash Logger - 7"

$3,249.00
AIM Sports

AiM MXG 1.3 Dash Logger - 7"

$3,249.00 Qualifies For Free Shipping

SKU: XA4MXG12A13001

4 People Are Looking At this!

10-Day Returns

AiM MXG 1.3 7" Dash and Data Logger

The MXG 1.3 auto data acquisition systems at 7". An evolution of the MXG that was designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS09c Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7" display makes it perfect for wide cockpits installation.

Typically ships in 3-5 days.

Click here for Stock ECU List | Click here for Racing ECU List

WiFi Connectivity
Configure, calibrate and download your data wirelessly over a secure 802.11 WiFi connection.

CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

High contrast TFT display
A high contrast TFT display identifies MXG at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.

Freely configurable pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Swapping between pages can be managed pushing one or two pushbuttons.

Flexible alarms
MXG features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

Two digital outputs
MXG 1.3 features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Integrated shift light array
Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required.

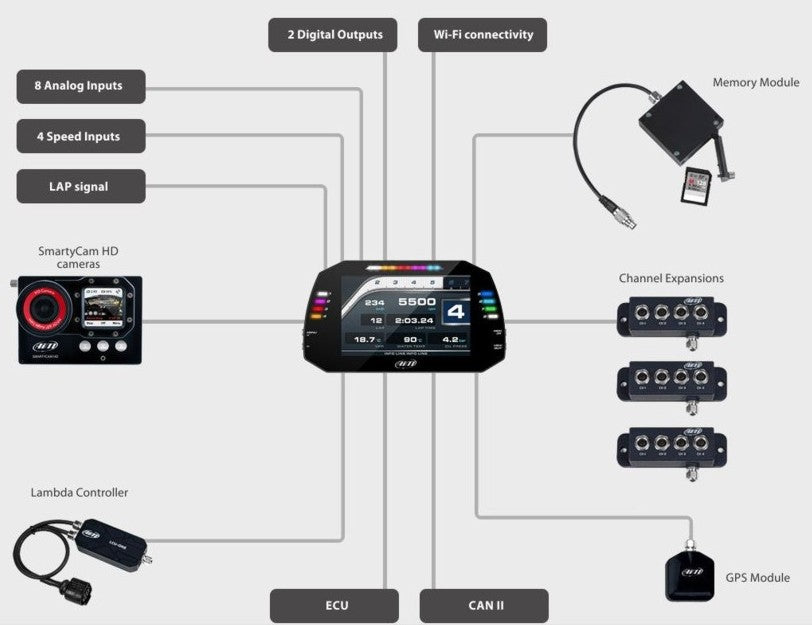

Expand the system, according to your needs:

  • GPS09 Module (included in the kit)
  • Channel Expansion
  • TC Hub
  • LCU-One Lambda Controller
  • SmartyCam HD Rev.2.1 Cameras and All SmartyCam 3 Versions

Included in the box:

  • AiM MXG 1.3 Dash Logger
  • 37-pin primary harness with bulkhead adapter
  • 1.3m GPS 09
  • USB download cable

Optional:
Secondary Harness: 2 digital inputs, 4 analog inputs, 2nd CAN input

Technical Specifications:

  • Display: 7” TFT
  • External modules: GPS Module, Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
  • Inertial platform: Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
  • Shift Lights: 10 configurable RGB LEDs

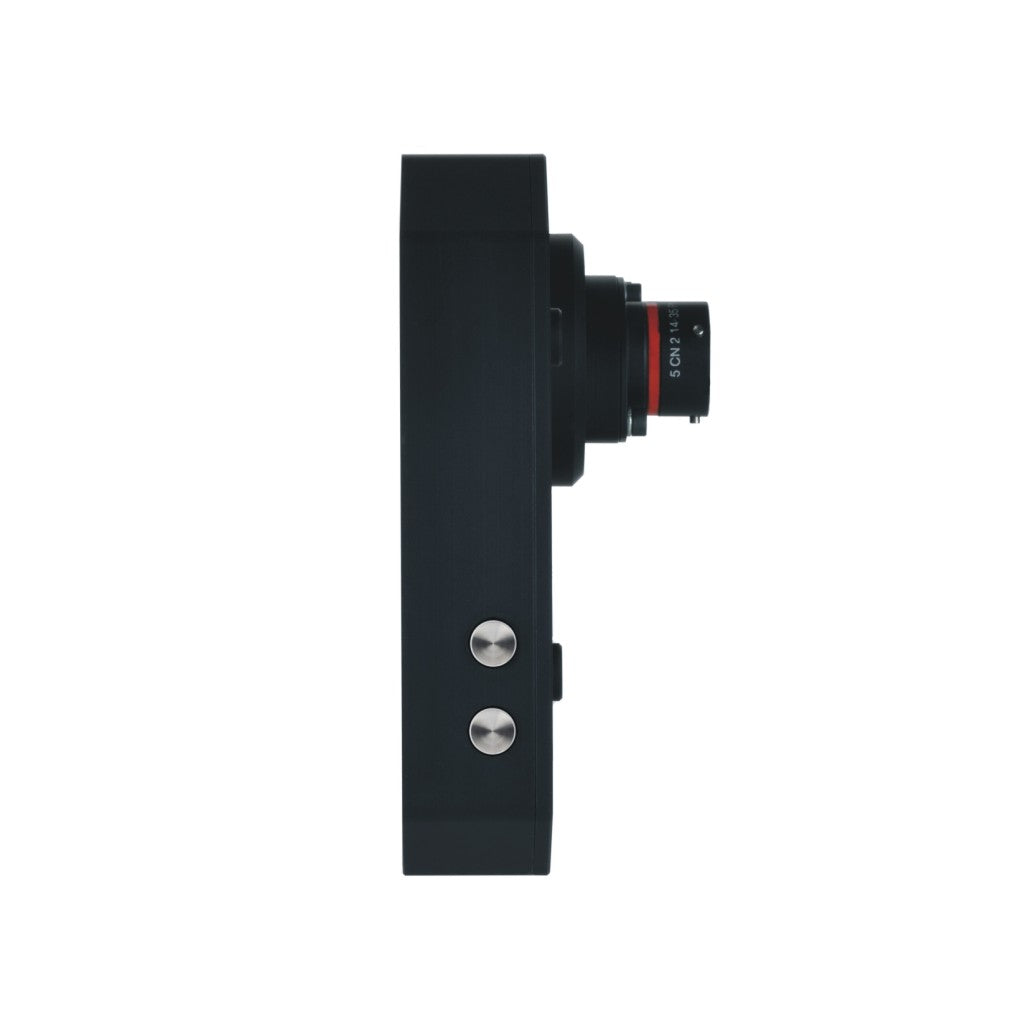

  • Pushbuttons: Metallic
  • Weight: 950 g
  • Power consumption: 400 mA
  • CAN connections: 3
  • Analog inputs: 8 fully configurable, max 1,000 Hz each
  • Resolution: 800x480 pixels
  • Contrast: 1000:1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Dimensions: 237x127.6x26 mm
  • Waterproof: IP65

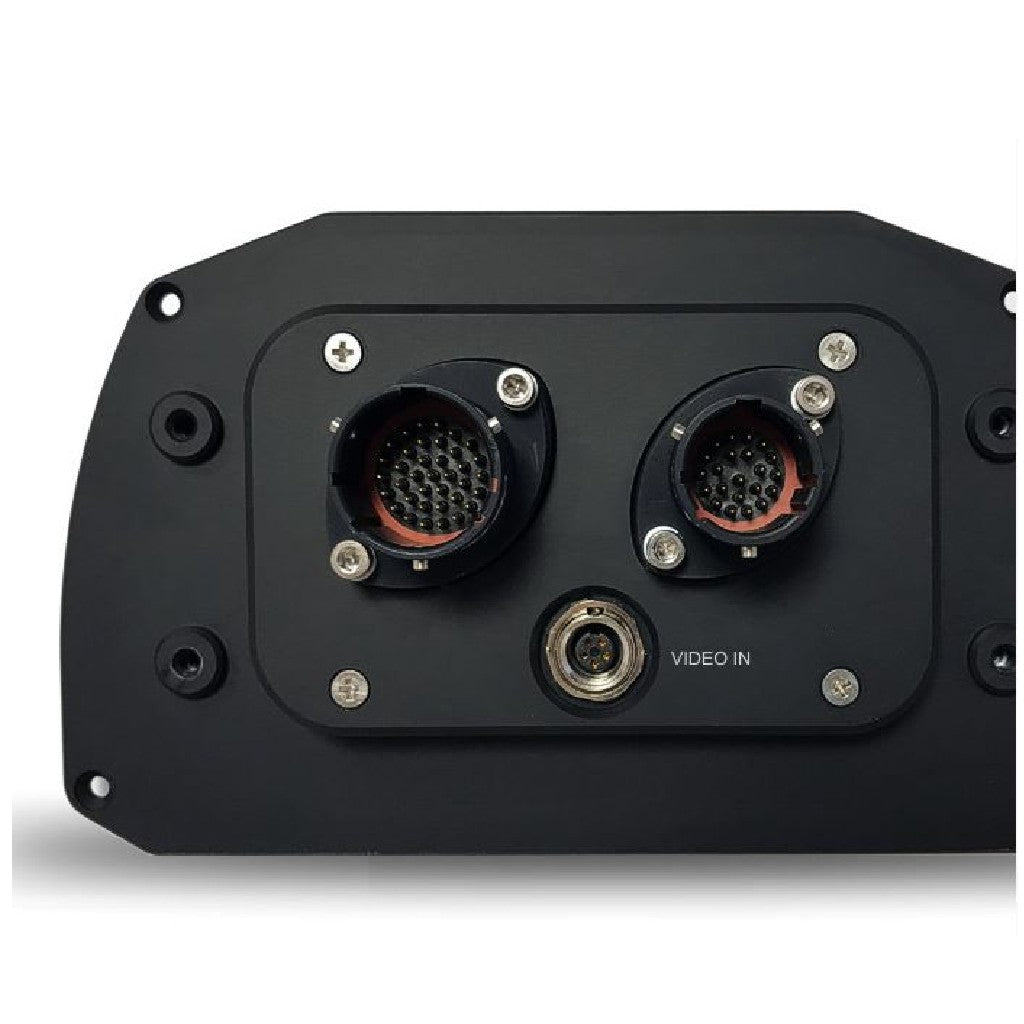

  • Connectors: 2 Motorsport connectors + 1 Binder connector
  • Alarm LEDs: 8 configurable RGB LEDs
  • Body: Anodized Aluminum
  • ECU connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • Digital inputs: 4 Speed inputs, lap signal, coil RPM input
  • Digital outputs: 2 (1 Amp max each)
  • Second CAN: Yes (optional 22-pin harness needed)
  • WiFi connection: Yes
  • Internal memory: 4 GB
  • Ambient light sensor: Yes
  • Waterproof: IP65
