AiM SmartyCam3 Corsa, SmartyCam3 GP ECU Harness / 3.5mm External Mic Jack

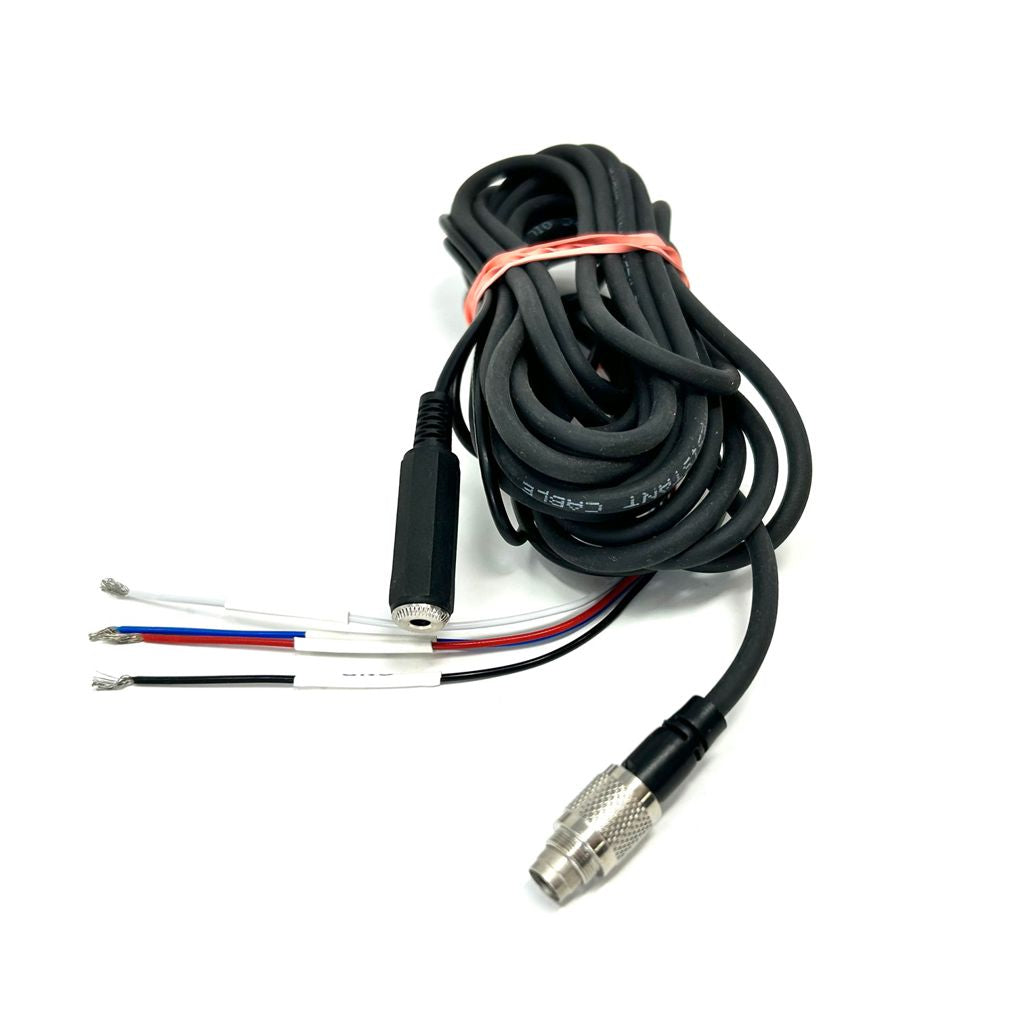

Cable designed to power and connect to your ECU your SmartyCam3 GP, SmartyCam3 Corsa, SmartyCam HD Rev. 2.1 and SmartyCam GP 2.2. Power harness connects the SmartyCam direct to an ECU via CAN. Unterminated leads include 12v, ground, CAN + and CAN - with a 3.5mm external mic jack. This cable would be used if the camera is running in a stand alone configuration with no data logger connection and add an external microphone. For optimal configuration you would want to add the GPS09 module.

• 4m Length

Compatible with the following Cameras:

• SmartyCam3 Corsa (all)
• SmartyCam3 GP
• SmartyCam HD Rev. 2.1
• SmartyCam HD Rev. 2.2 (GP)
