AiM MX UTV Arctic Cat Wildcat Dash Logger

AiM MX UTV Arctic Cat Wildcat Dash Logger

$699.00

Cable Length

2 Seat - 2.5m 4 Seat - 4m

0 watching this item.

0 have this item in their cart.

Description

AiM MX UTV Data Logging Dash/Gauges

Absolute freedom with AiM MX UTV custom dash logger for the Arctic Cat Wildcat. MX UTV is the new AiM dash logger specifically designed for the off-road world, in order to offer our best technology to those racers who crave running in absolute freedom.

Supported models:
- Wildcat XX

Speed, RPM, Coolant Temp, Transmission Belt Temp and GPS Lap times are just a few things that can be shown and data logged.

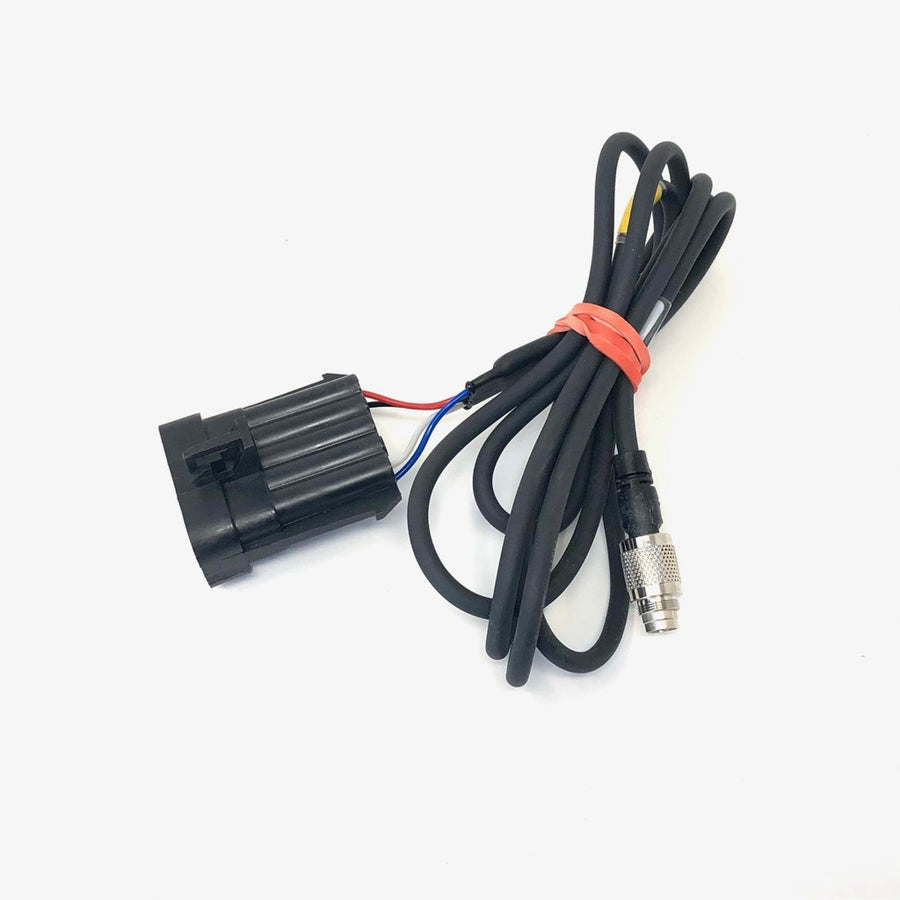

Setting up your MX UTV is simple. The AiM MX UTV allows you to select your vehicle brand and type, like the Arctic Cat, directly from the dash menu. Simply plug it into the diagnostic port or ODBII port with the supplied ECU connector.

MX UTV acquires and shows the following important information:

Data coming from your ECU
Transmission belt temperature, by using the infrared sensor included in the kit

Model: Arctic Cat Wildcat
Channels that will be data logged and or displayed:

Speed
RPM with configurable RGB shift lights
Gear
Engine Coolant Temp (ECT)
Throttle Position (TPS)
Brake Switch
Transmission Belt Temperature via infrared temp sensor

Transmission belt temperature, no more worries.

The transmission belt temperature is one of the main concerns for UTV drivers. Now you can monitor actual belt surface temperature in Real-Time.

Thanks to the infrared temperature sensor, included in the kit, it is possible to constantly check the temperature, reading it directly on the display.

Two RGB alarm LEDs will turn on when the temperature gets close to the critical level.

Find always your track and your data as well

Thanks to the integrated GPS Module, MX UTV automatically recognizes the track you are racing on and calculates lap times and your position on the track with high precision.
Besides, thanks to the auto-learning mode, MX UTV will always be able to add new tracks into its internal tracks database.

All the acquired data, from the ECU, from the Belt Temp Sensor, and from the GPS, is stored in a huge 4 GB internal memory, which can log your data for several thousands of hours.

GPS Data: speed, position, time of the day and, with a precision of 1/100 sec, the lap times, thanks to the powerful built-in GPS Module.

- Expandable to run LCU-one CAN Wide band Lambda controller, with Bosch LSU 4.9 probe providing Air/Fuel data for tuning.

- SmartyCam HD Camera, provides on-board data from your ECU and GPS and overlayed onto your video.

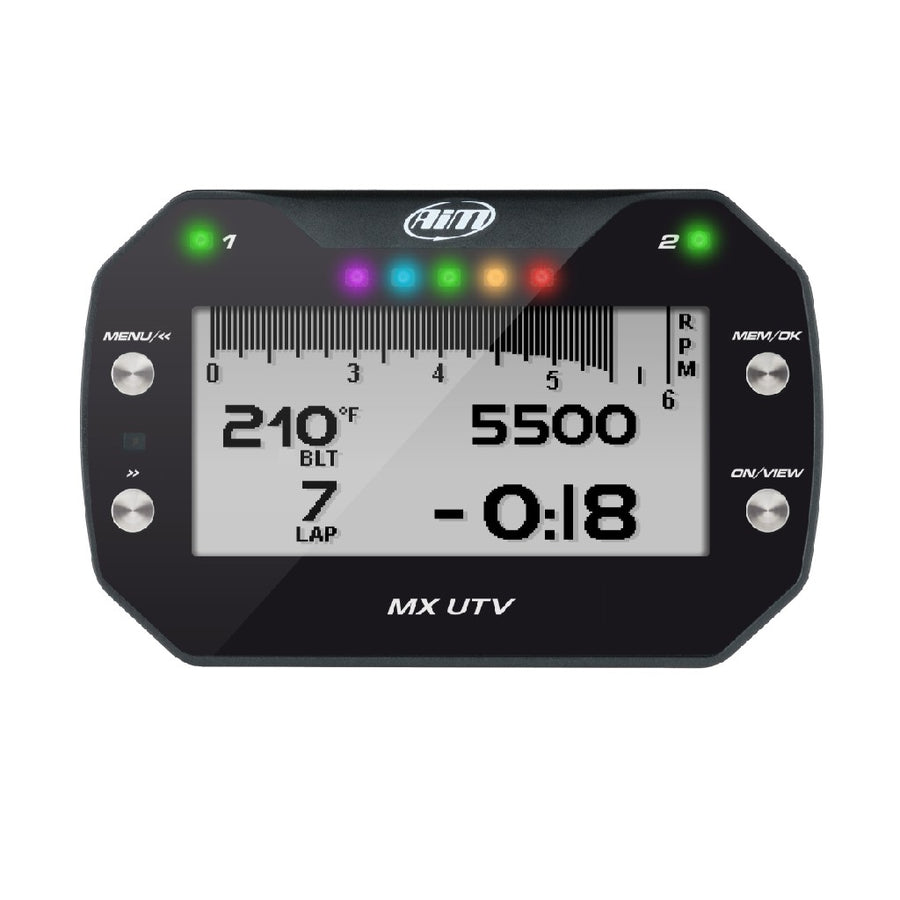

The wide LCD display has a freely configurable RGB backlight, which gives you the possibility to choose among eight different colors, and a light sensor that automatically switches on the backlight with low light conditions.
