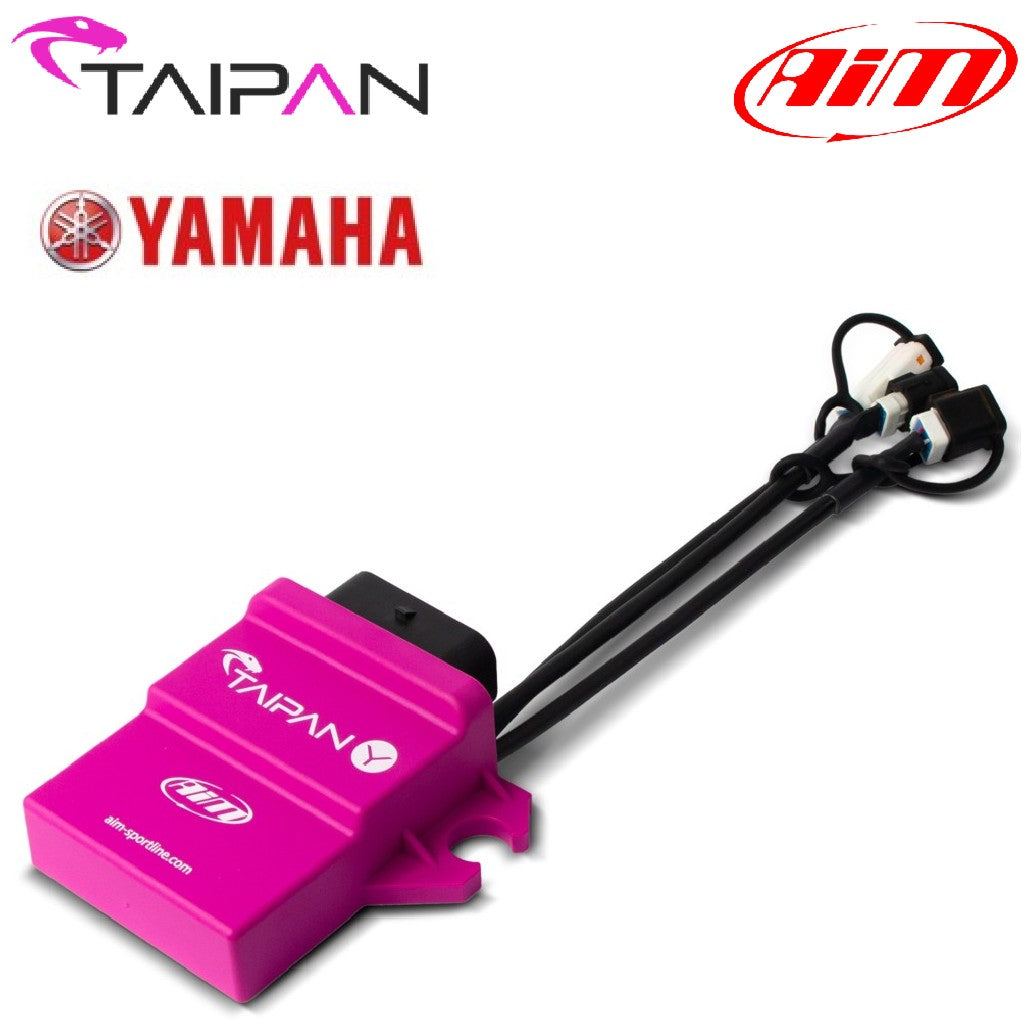

Taipan Y Racing Programmable ECU for Yamaha off-road motorcycles

AiM Taipan Y programmable racing ECU's for Yamaha YZ-F off-road motocross bikes, enduro bikes and flat track racing bikes. Taipan Y is the brand-new aftermarket plug & play ECUs created by AiM, exclusively designed for off-road motorcycles. Thanks to their high technology 32-bit core, they represent an important step forward to improve the performances of your motorcycle, without sacrificing reliability and smoothness. The Taipan Y is provided and programmed with 5 base maps. Custom maps including launch control, traction control and advanced strategies can be programmed by an authorized programmer.
Note: SPECIAL ORDER ITEM

High technology 32-bit core

Engine control requires precision.
At 20,000 RPM the Taipan ECU guarantees a precision of 1/10 of
degree: this means an accuracy within 0.8 µsec for turning the spark ON!

This precision is the key to guarantee:

• A very consistent engine rotation
• The possibility to repeat dozens of tests at the bench always obtaining the same exact result
• A perfect reactivity at every minimum change of any point of a map and, at the end…
• More power at the wheel

Features:

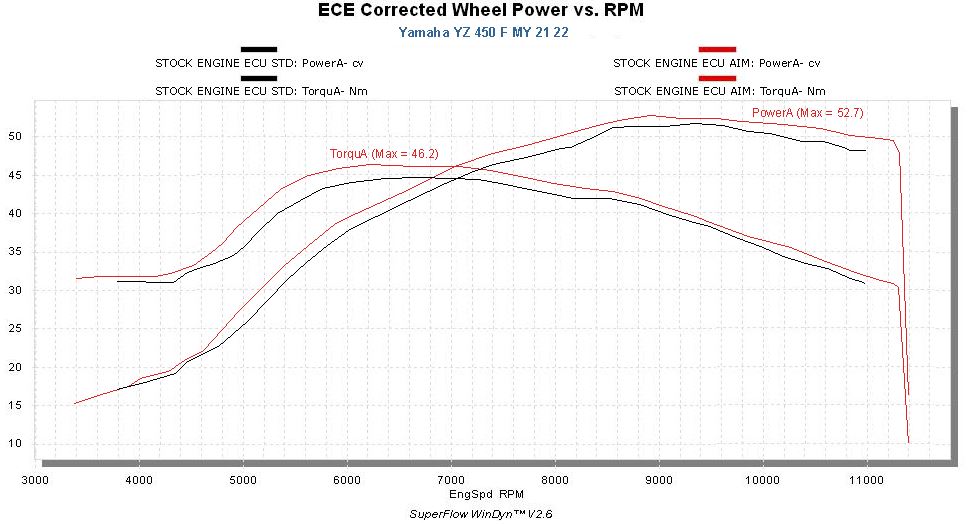

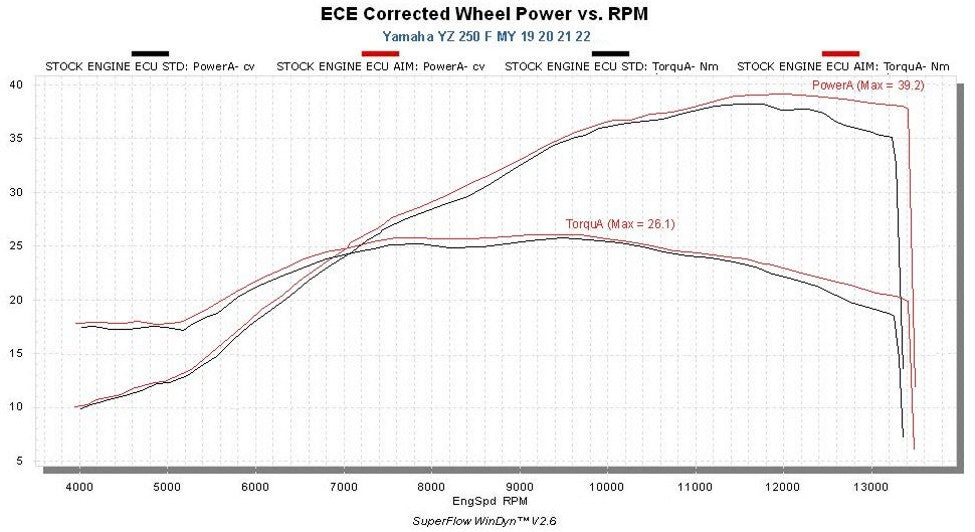

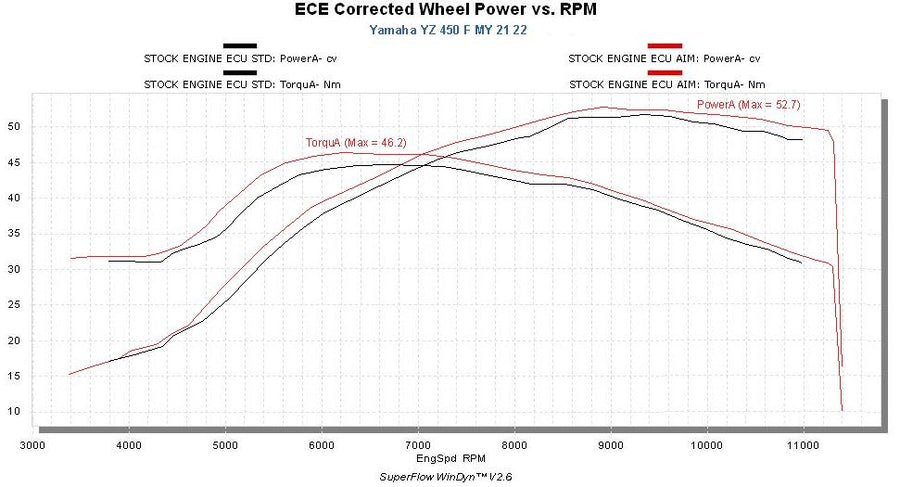

• Increased throttle response with more low-end torque and hi end power
• 5 fuel trim settings with the push of a button (leaner or richer) with use of the handlebar switch
• Fuel trim settings in Lo, Mid and High RPM ranges
• Optimized over-rev
• 5 Pre-programmed ECU maps
  - Map 1 | Top Performance through the entire RPM range
  - Map 2 | Linear provides a even less aggressive power application
  - Map 3 | RPM Optimizer, Map 1 with a greater “reach” in over-revs
  - Map 4 | A variant of Map 1 with less engine brake
  - Map 5 | A variant of Map 2 with less engine brake
• Launch control capabilities
• Traction control capabilities
• Quick shift capabilities
• Second injector capabilities
• User set RPM ranges (user ECU bridge required)
• User set fuel trim percentages (user ECU bridge required)

Fully Plug & Play for the following Yamaha Models:
Yamaha YZ 250F 2019-2023 | Motocross
Yamaha YZ 450F 2019-2022 | Motocross

Up to 5 selectable maps can be loaded and controlled by the OEM handle bar switch or the AiM handle bar switch. Fuel maps, traction control and launch control are all available to be controlled.

Advanced strategies:
Strategies can be configured for second injectors, quick shift, launch control, traction control and all the important parameters that a rider need. The possibility to configure and to set your bike, thank to the many different strategies and corrections implemented, is really endless. Here down, a list of the most important:

• Injection main alpha-n
• Injection main speed-density
• Injection crank correction
• Pre-injection
• Injection BAP correction
• Injection EWT correction
• Injection IAT correction
• Injector battery correction
• Injector 2
• Ignition BAP correction
• Ignition EWT correction
• Ignition IAT correction
• Ignition opening transient correction
• Ignition closing transient correction
• Launch control
• Injection launch control main table
• Ignition launch control main table
• Quick shift
• Traction control

Extra Analog Inputs:
2 analog inputs to manage external sensors to improve the bikes performance, such as barometric air pressure

Extra Digital Inputs:
2 outputs, one dedicated to a second injector and another free to add another device, like, for example, a water pump.
