Ford Shelby GT350 / GT350R Lap Timer and Data Pack w/Suction Cup Mount

Now available from Product41 - Proper ECU protocol with steering angle and brake psi. (2015-2019 models only, All S550 platform, GT's and GT350's)

AiM, The world leader in Data Acquisition Systems has just release the latest Ford ECU template that can be used with the AiM Solo2 DL in the Shelby GT350 and GT350R's for capturing and recording some key elements of your car, engine and driver while on track.

With the use of the AiM Solo2 DL, you can record RPM, speed, acceleration, braking, independent wheel speeds, coolant temp and lap times to name a few. Better than any track app, this data can be downloaded, reviewed and even overlayed from other track days or sessions. FREE standard ground shipping.

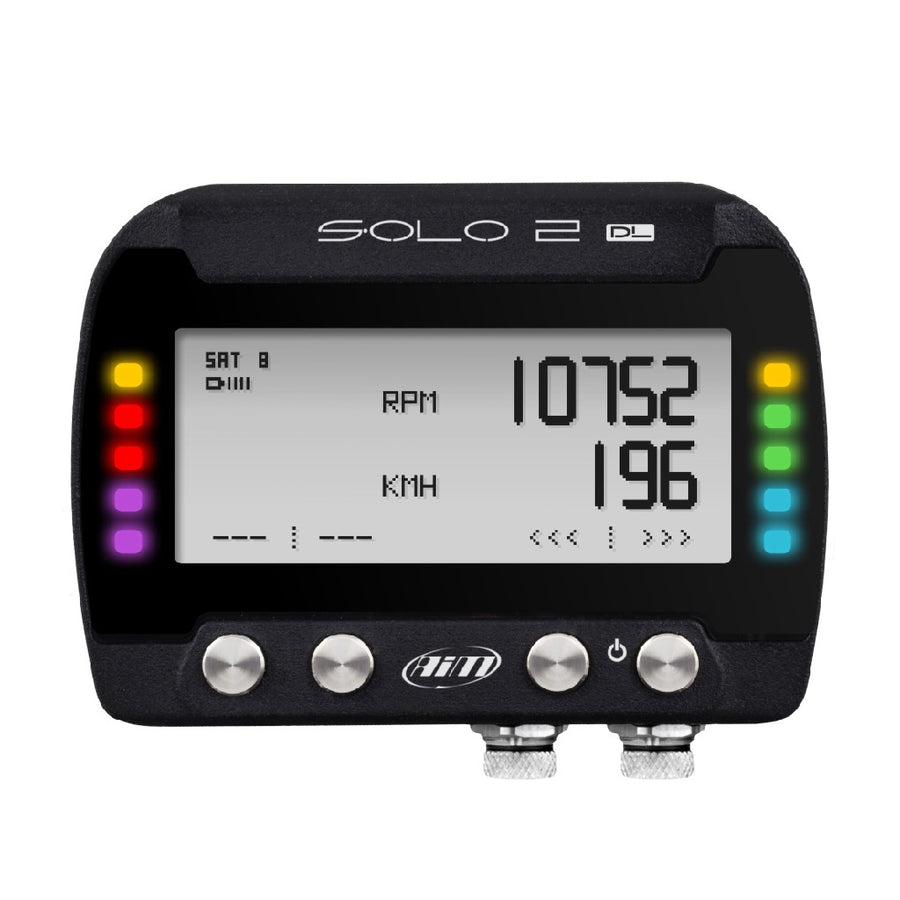

At Product41 we believe in the monitoring of both vehicle and driver performance. The AiM Solo2 DL GPS Lap timer with ECU connection is the perfect addition to any performance vehicle being used for autocross, auto racing or track days. Ford has engineered and produced an incredible vehicle with the GT350, this hands down will be one of the best upgrades you can give yourself.

All of the GPS and ECU based data recorded on Solo2 DL can be deeply analyzed with the powerful Race Studio 2 professional software. Graphs, histograms and tables will help you understand your performance at all positions on the track.

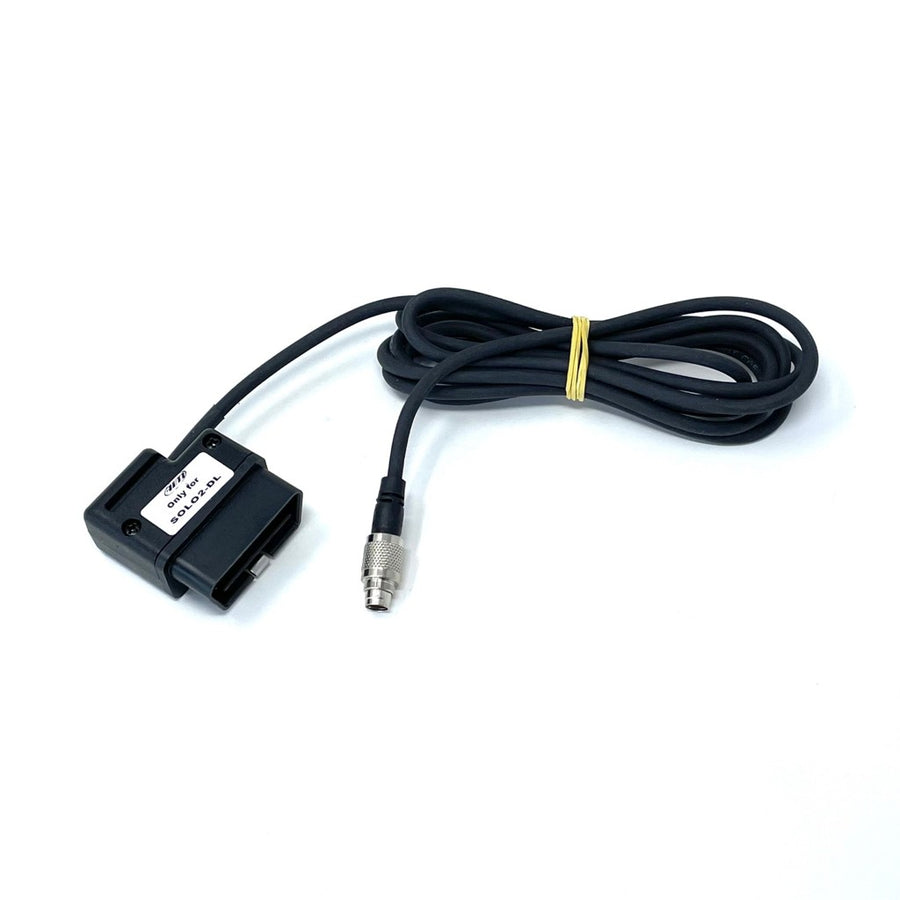

Data Package complete with AiM Solo2 DL, OBD2 connection and Suction Cup Mount

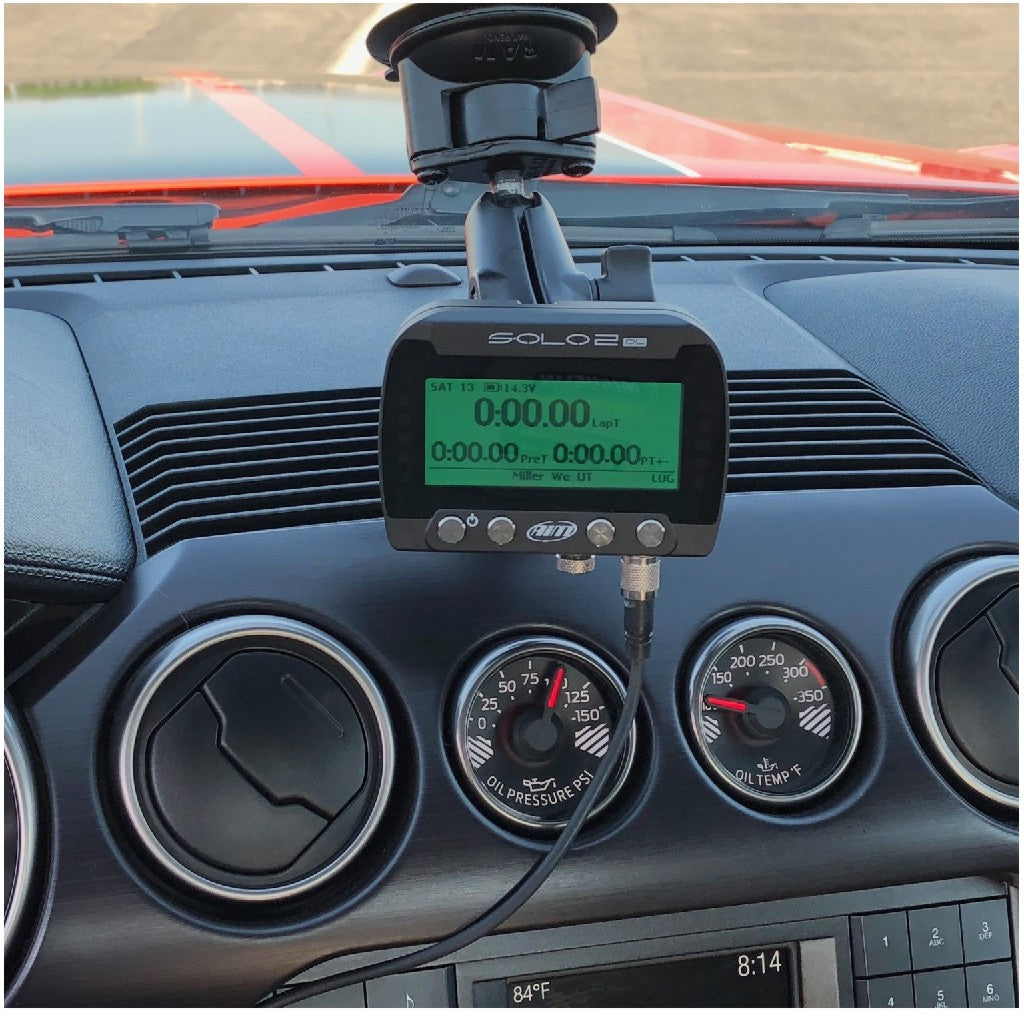

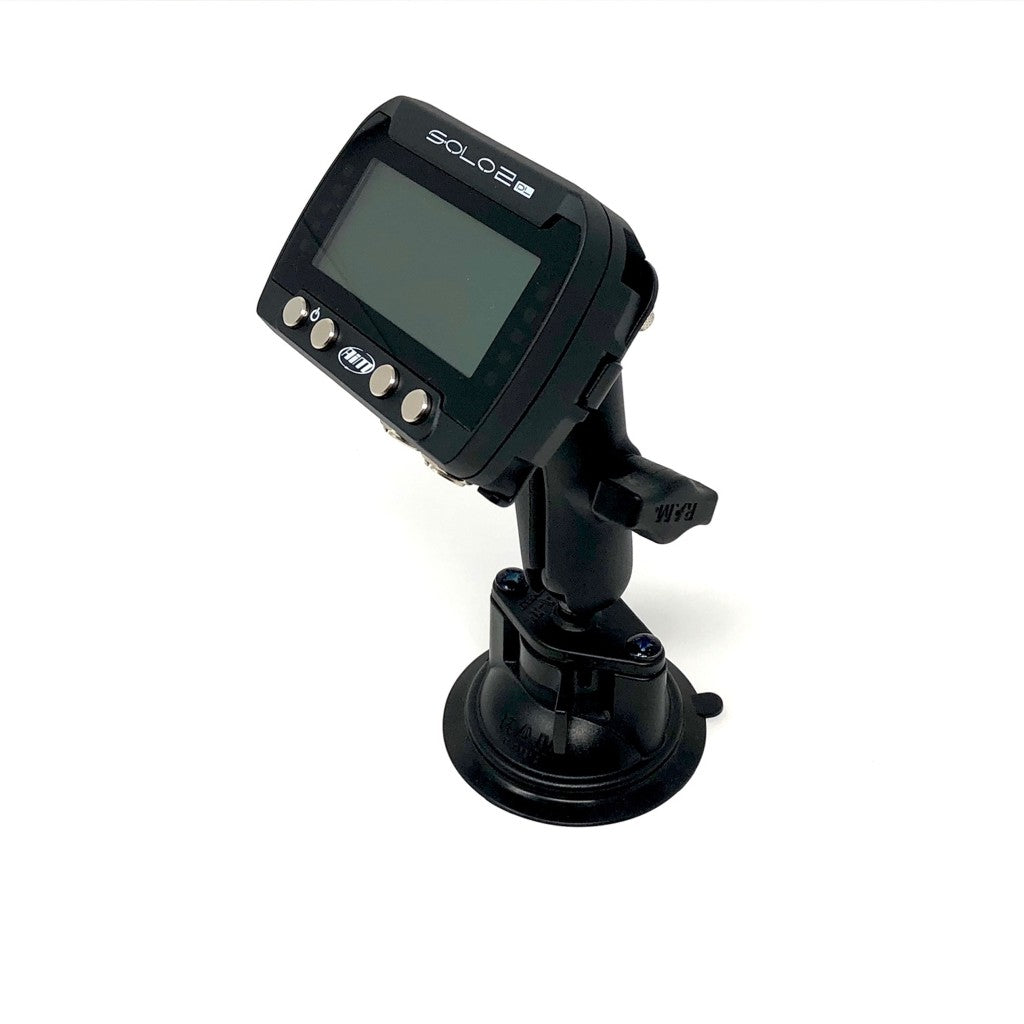

The Solo2 DL is easily installed by way of a heavy duty RAM suction cup mount and connects to the ECU via the CAN/ODBll port with one simple plug. The finished look is a clean and can be easily removed.

Here is a short list of data the Solo2 DL will capture and record for later viewing from the vehicle and engine ECU.

• Engine RPM
• Engine Coolant Temp
• Intake Air Temp
• Throttle Pedal Position
• Transmission Temp
• Engine oil temp
• All 4 Wheel Speeds - independent
• All 4 Wheel Tire Pressures - independent (with OEM TPMS sensors installed)
• Gear Selection (not through OBDII, to be calculated from driving)
• Vehicle Battery Voltage
• Steering Wheel Angle
• Brake Pressure

Find your track with the powerful GPS technology

The most important feature of Solo is to show your lap times.
When Solo is powered up, it automatically recognizes the start/finish line coordinates of the track you are visiting based on the huge list of World tracks stored on Solo's internal memory, this allows very precise lap times with very little effort

Select your race mode

With a simple keyboard configuration Solo can manage four different forms of motorsports: speed races in a closed circuit, point-to-point races, regularity and performance tests.
In all of these different situations Solo gives the proper information during the test and powerful data review immediately after each session.

Choose your lap time mode

The Solo2 DL is fully configurable and includes different lap time display modes:

• Rolling lap time
• Static lap time
• Predictive lap time, calculated during the current lap
• Predictive lap time, calculated as difference between the above and the best lap of the session.
• Best lap

The AiM Solo2 DL can also be connected to any of the powerful AiM SmartyCam3 series of cameras. This will allow your data to be imbedded into the video with overlay.
