AiM MXS 1.2/1.3 Strada

The MXS 1.2/1.3 Strada, compact size color TFT dash for road use. The "Strada" version is much the same as the MXS 1.3 dash logger but without the data logging capabilities. The "Stada Logger" option can be added at anytime to bring it to a full data logger. The MXS 1.2/1.3 comes in 2 versions, standard and street icon version. Both versions come with a standard 14pin harness for power and ECU connection. If no ECU is available, the optional 23pin harness will be required along with sensors and patch cables.

Typically ships in 3-5 days.

Click here for Stock ECU List | Click here for Racing ECU List

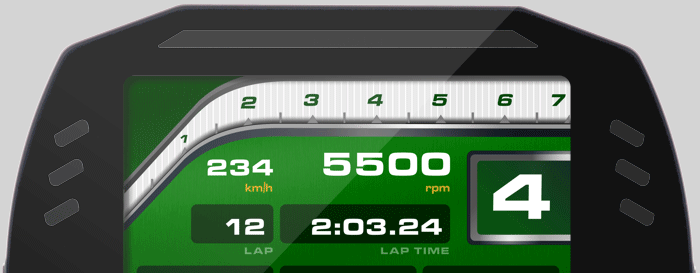

High contrast TFT display
A high contrast TFT display identifies MXS at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.

Freely configurable pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Swapping between pages can be managed pushing one or two pushbuttons.

Flexible alarms & custom street icons
MXS Strada features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.

Digital outputs
MXS 1.2/1.3 Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU.
This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Integrated shift light array
Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required.

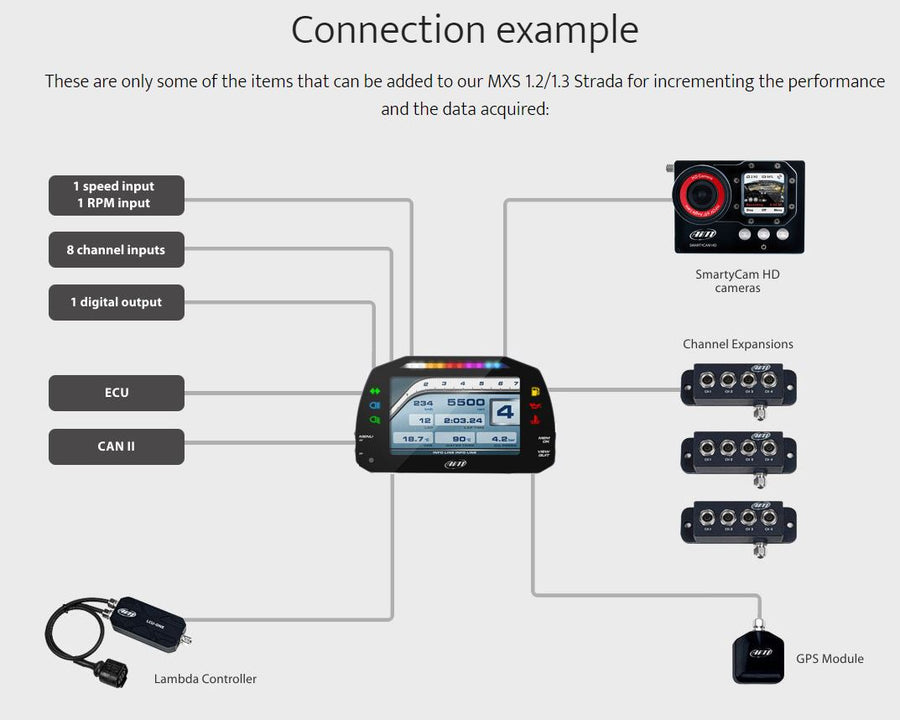

Expand the system, according to your needs:

• GPS09 Module
• Channel Expansion
• TC Hub
• LCU-One Lambda Controller
• SmartyCam HD Rev.2.1 Cameras and All SmartyCam 3 Versions

Included in the box:

• AiM MXS 1.2/1.3 Strada Dash
• 14-pin power/CAN harness
• USB download cable

Optional:

• 23-pin harness (2 digital, 8 analog channels) Typical for non-ECU vehicles wanting external sensors like temps and pressures.
• GPS Module

Technical Specifications:

• Display: 5” TFT
• External modules: GPS Module, Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
• Shift Lights: 10 configurable RGB LEDs
• Pushbuttons: Metallic
• Weight: 480 g
• Power consumption: 400 mA
• CAN connections: 2
• Analog inputs: 8 fully configurable, max 500 Hz each
• Resolution: 800x480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Dimensions: 237x127.6x26 mm
• Waterproof: IP65

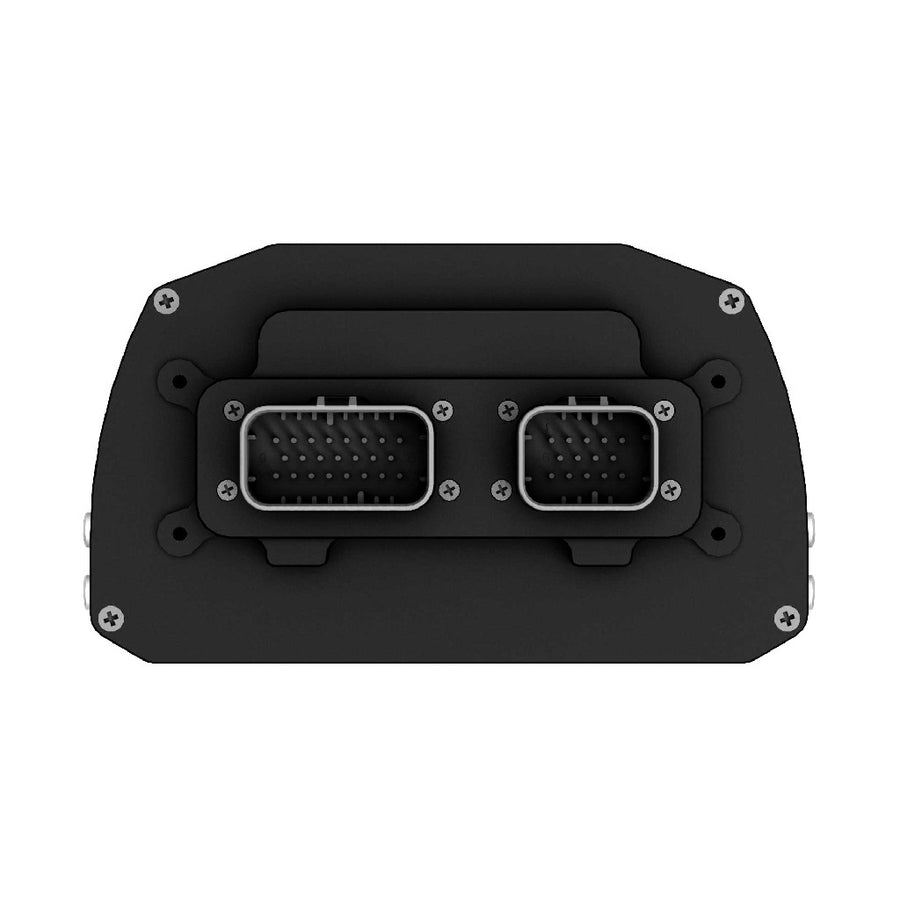

• Connectors: 2 AMP connectors + 1 Binder connector
• Alarm LEDs: 6 configurable RGB LEDs
• Body: Anodized Aluminum
• ECU connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
• Digital inputs: 1 Speed inputs, 1 coil RPM input
• Digital outputs: 1 (1 Amp max)
• Second CAN: Yes (optional 23-pin harness needed)
• Ambient light sensor: Yes

• Waterproof: IP65
