ACC3 - Analog Channel CAN Converter

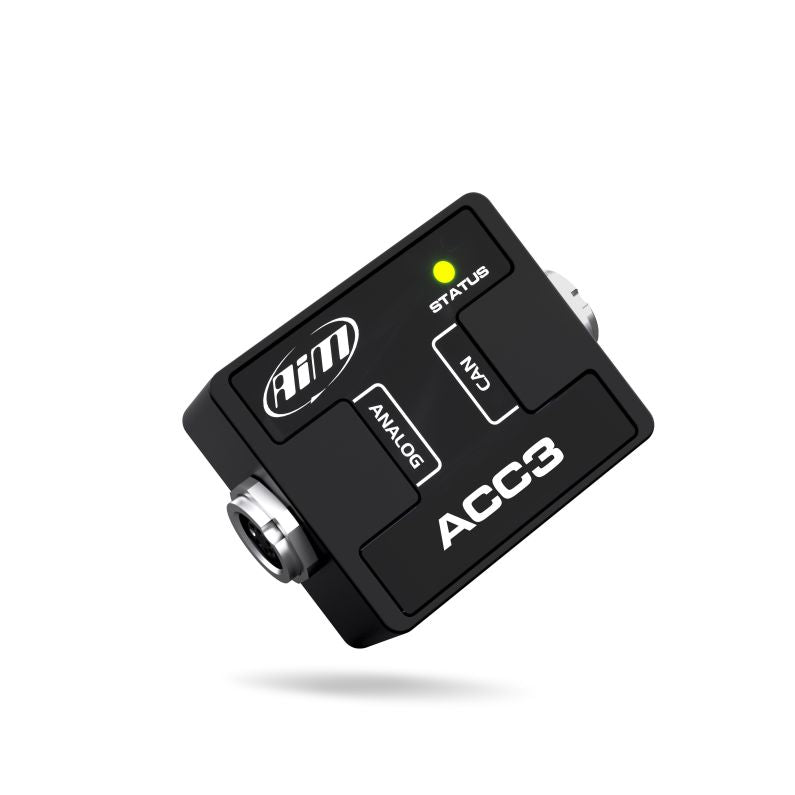

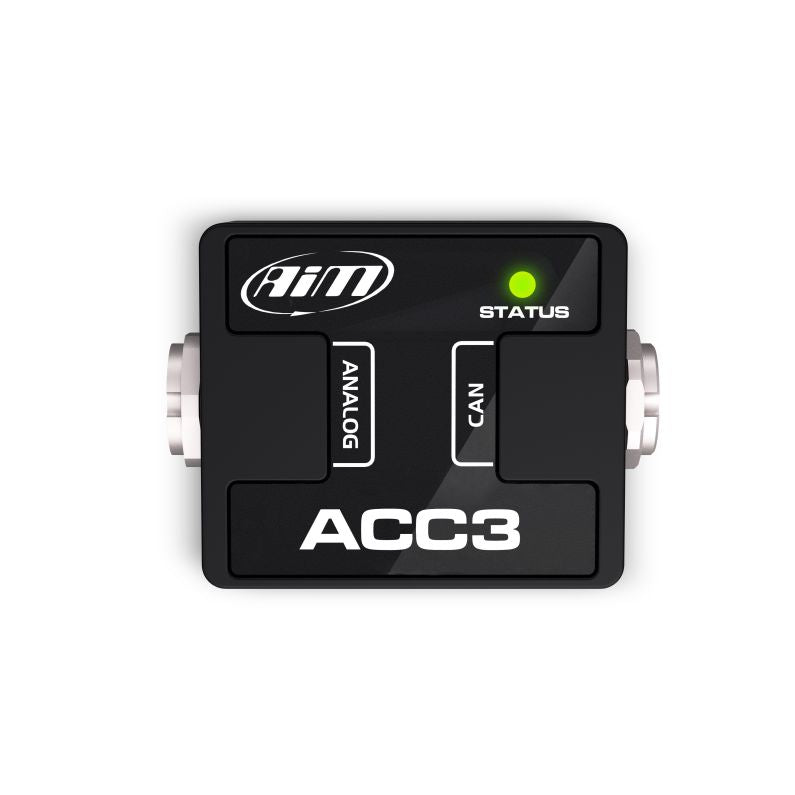

The ACC3 brings much wanted expandability to your Solo 2 DL or MyChron 6, just to name a few.  The ACC3 is the new compact and powerful Analog CAN Converter that manages up to four additional analog channels at 200 Hz each. Configurable using the powerful Race Studio 3 software. The ACC3 manages 4 analog inputs, thermocouples (TC), thernoresistances (TR), 0-5v and 0-12v at a maximum frequency of 200Hz each.

Compatible with the AiM Solo2 DL and MyChron 6

Kit includes:

• ACC3 Compact Analog CAN Converter
• 4 Channel Analog 719 binder harness, (50cm, 19")
• CAN Cable 5pin-5pin - 1m standard. (Optional lengths available)
• Note: Must be connected to 12v power (example: Solo2DL powered via OBDII or external 12v, MyChron 6 via 12v)
• Note: Custom length harness can be ordered. We stock the 50cm split harnesses. (50cm/19", 100cm/39", 200cm/78" or 400cm/157")

CHANNEL CONFIGURATION

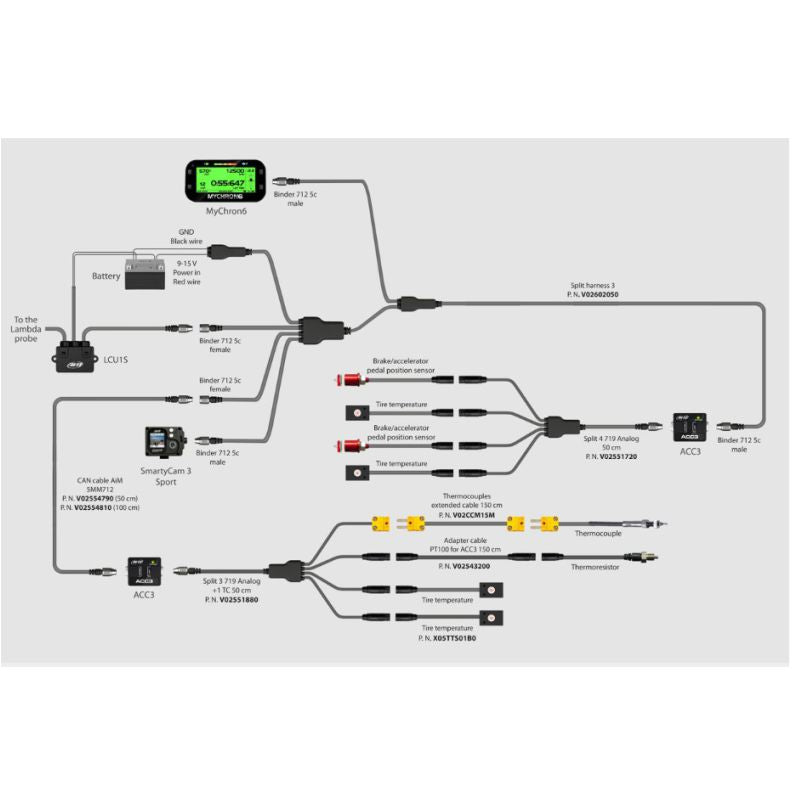

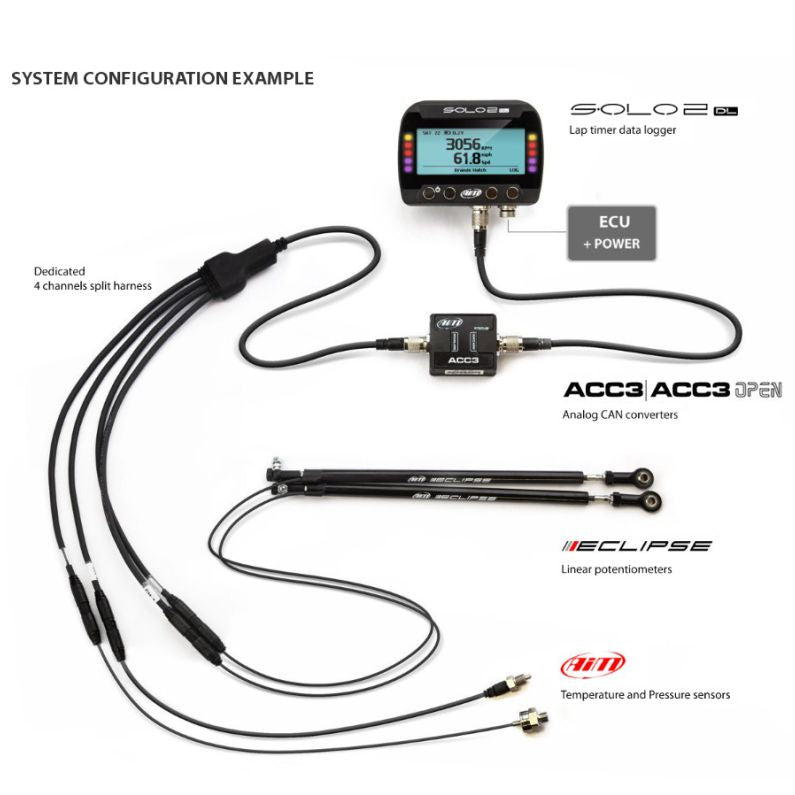

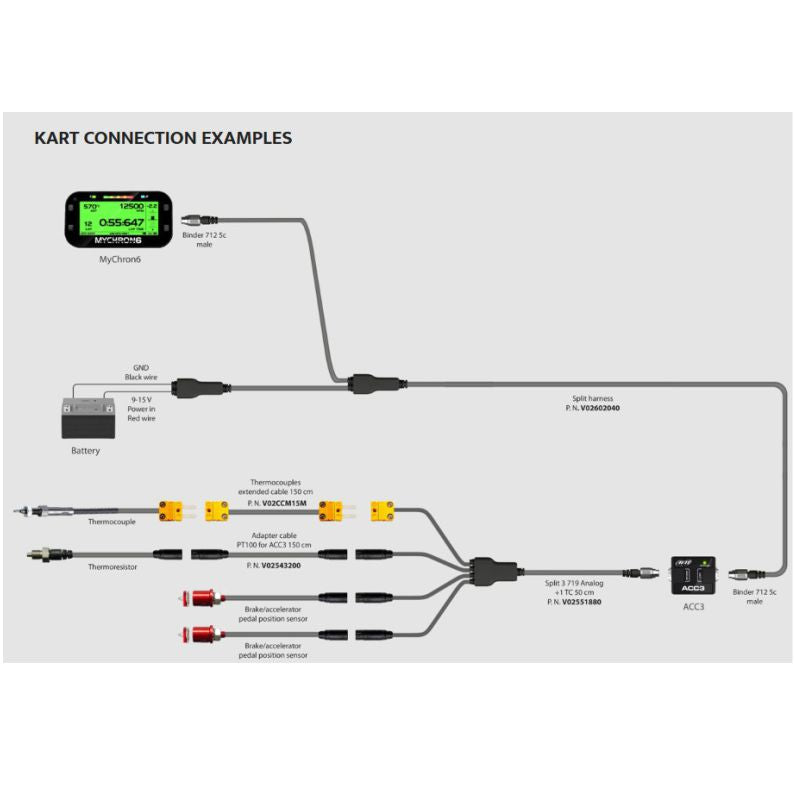

Once the proper split harness has been chosen between the available range, you can configure the channels according to the kind of sensor you connect to the converters.
ACC3 and ACC3 Open support up to four K type thermocouples to manage the temperatures.
